Hermite4 Class Reference

General class that define the structure to be follow by any implementation of the integrator (CPU, MPI or GPU). More...

#include <Hermite4.hpp>

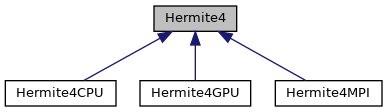

Inheritance diagram for Hermite4:

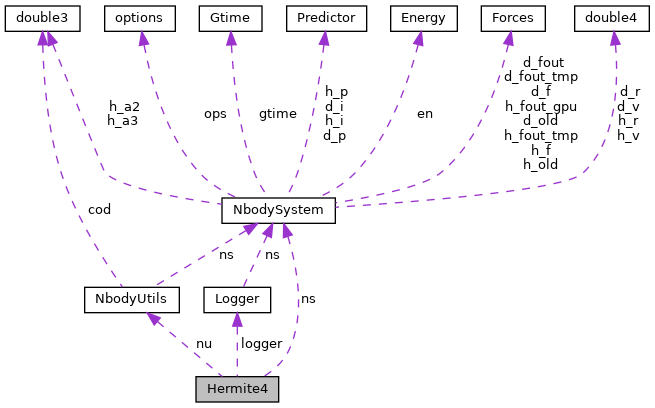

Collaboration diagram for Hermite4:

Public Member Functions
	Hermite4 (NbodySystem *ns, Logger *logger, NbodyUtils *nu)
	Constructor in charge of calling the allocation and initialization methods. More...
	~Hermite4 ()
	Destructor in charge of calling the method that free the memory. More...
unsigned int	find_particles_to_move (double ITIME)
	Method in charge of finding all the particles that need to be updated on the following integration step. More...
void	next_integration_time (double &ATIME)
	Methods that look for the next integration time, looking for the minimum combination of timestep and current time of all the particles of the system. More...
void	init_dt (double &ATIME, float ETA, double ITIME)
	Initialization of the timesteps of the system. More...
void	save_old_acc_jrk (unsigned int nact)
	Method in charge of saving the old values of the acceleration and its first derivative to be use in the Corrector integration step. More...
void	alloc_arrays_host ()
	Method in charge of the memory allocation of all the data structures. More...
void	free_arrays_host ()
	Method in charge of the memory deallocation of all the data structures. More...
void	init_data ()
	Method that initialize all the data structures that will be used in the integration of hte system. More...
virtual void	integration ()
	Integration virtual method to be implemented. More...
virtual void	predicted_pos_vel (double itime, double *t, double4 *r, double4 *v, Forces *f, Predictor *p)
	Prediction virtual method to be implemented. More...
virtual void	correction_pos_vel (double itime, unsigned int nact, double *dt, double *t, unsigned int *move, Predictor *p, Forces *f, Forces *old, double3 *a2, double3 *a3, double4 *r, double4 *v)
	Correction virtual method to be implemented. More...
virtual void	force_calculation (Predictor pi, Predictor pj, Forces &fi)
	Force virtual method to be implemented. More...
virtual void	init_acc_jrk (Predictor *p, Forces *f)
	Force initialization virtual method to be implemented. More...
virtual void	update_acc_jrk (unsigned int nact, unsigned int *move, Predictor *p, Forces *f)
	Force update virtual method to be implemented. More...

Public Attributes
NbodySystem *	ns
	NbodySystem object reference. More...
Logger *	logger
	Logger object reference. More...
NbodyUtils *	nu
	NbodyUtils object reference. More...

Detailed Description

General class that define the structure to be follow by any implementation of the integrator (CPU, MPI or GPU).

The methods on this class must be implemented to have a proper behaviour of the integrator.

Constructor & Destructor Documentation

Hermite4()

Hermite4::Hermite4	(	NbodySystem *	ns,
		Logger *	logger,
		NbodyUtils *	nu
	)

Constructor in charge of calling the allocation and initialization methods.

~Hermite4()

Hermite4::~Hermite4

(

)

Destructor in charge of calling the method that free the memory.

Member Function Documentation

alloc_arrays_host()

void Hermite4::alloc_arrays_host

(

)

Method in charge of the memory allocation of all the data structures.

correction_pos_vel()

virtual void Hermite4::correction_pos_vel ( double  itime, unsigned int  nact, double *  dt, double *  t, unsigned int *  move, Predictor *  p, Forces *  f, Forces *  old, double3 *  a2, double3 *  a3, double4 *  r, double4 *  v  )

inlinevirtual

Correction virtual method to be implemented.

find_particles_to_move()

unsigned int Hermite4::find_particles_to_move

(

double

ITIME

)

Method in charge of finding all the particles that need to be updated on the following integration step.

Since we are using DP, we base the comparison between times and timesteps using the machine epsilon, to avoid overflows.

force_calculation()

virtual void Hermite4::force_calculation ( Predictor  pi, Predictor  pj, Forces &  fi  )

inlinevirtual

Force virtual method to be implemented.

Reimplemented in Hermite4GPU, Hermite4MPI, and Hermite4CPU.

free_arrays_host()

void Hermite4::free_arrays_host

(

)

Method in charge of the memory deallocation of all the data structures.

init_acc_jrk()

virtual void Hermite4::init_acc_jrk ( Predictor *  p, Forces *  f  )

inlinevirtual

Force initialization virtual method to be implemented.

init_data()

void Hermite4::init_data

(

)

Method that initialize all the data structures that will be used in the integration of hte system.

init_dt()

void Hermite4::init_dt	(	double &	CTIME,
		float	ETA,
		double	ITIME
	)

Initialization of the timesteps of the system.

This method is based on the Aarseth initial timestep definition and follows a Gaussian distribution.

integration()

virtual void Hermite4::integration ( )

inlinevirtual

Integration virtual method to be implemented.

Reimplemented in Hermite4GPU, Hermite4MPI, and Hermite4CPU.

next_integration_time()

void Hermite4::next_integration_time

(

double &

ATIME

)

Methods that look for the next integration time, looking for the minimum combination of timestep and current time of all the particles of the system.

predicted_pos_vel()

virtual void Hermite4::predicted_pos_vel ( double  itime, double *  t, double4 *  r, double4 *  v, Forces *  f, Predictor *  p  )

inlinevirtual

Prediction virtual method to be implemented.

save_old_acc_jrk()

void Hermite4::save_old_acc_jrk

(

unsigned int

nact

)

Method in charge of saving the old values of the acceleration and its first derivative to be use in the Corrector integration step.

update_acc_jrk()

virtual void Hermite4::update_acc_jrk ( unsigned int  nact, unsigned int *  move, Predictor *  p, Forces *  f  )

inlinevirtual

Force update virtual method to be implemented.

Member Data Documentation

logger

Logger* Hermite4::logger

Logger object reference.

ns

NbodySystem* Hermite4::ns

NbodySystem object reference.

nu

NbodyUtils* Hermite4::nu

NbodyUtils object reference.

---

The documentation for this class was generated from the following files:

• include/Hermite4.hpp
• include/Hermite4.cpp
